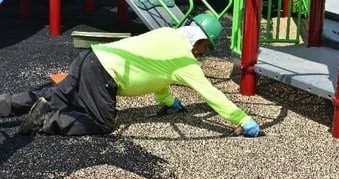

Site Preparation
-
Area must be excavated to remove all organic materials that will decompose, settle, & affect surfacing
-
Drainage must be addressed as safety surfacing is porous
-
Suitable sub-base & edging installed (options below)
-
ADA compliant grading needed

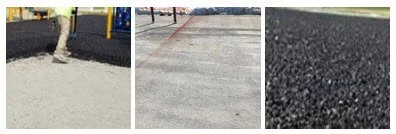

Sub-base Options:
-
Crushed Aggregate – Comprised of a 4” minimum of 3/4” crushed stone
-
Concrete – Existing concrete must be free from major cracks & damage. New concrete must have a minimum of 14 days to cure.
-
Asphalt – Existing Asphalt must be free of any major cracks & damage. New Asphalt must have a minimum of 30 days to cure & must be power washed 3 separate times

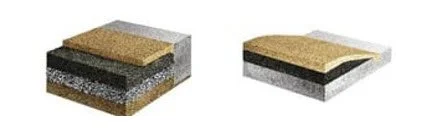

Edging Options (Borders):
A. Concrete
B. Treated Timbers
C. Rubber Curbs
D. Beveled Edge- Angling surfacing down to grade (can’t be done with stone)
E. Turn Down Edge- Angling surfacing down below grade, to be later back-filled by EWF, grass, etc. *PIP will not adhere to plastic timbers*

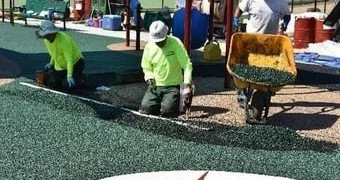

About the PIP System
-
Thickness of surfacing is dependent on the fall height of the play equipment
-
Wear course is made of TPV, cushion layer is made of Chunk (pre-consumer, post-industrial rubber)
-
Wear course only installations (no attenuating layer) must be installed over asphalt or concrete
-
Areas within the use zone of equipment must contain safety surfacing (communicated in square footage)
Urethane Options:
A. Aromatic (Standard, subject to amber)*
B. Aliphatic (Premium, does not amber)

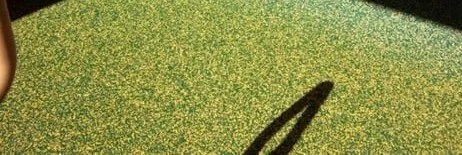

*Ambering effect is temporary & mechanically wears off over time. It is an issue with aesthetics but does not hurt or compromise the longevity of the rubber.

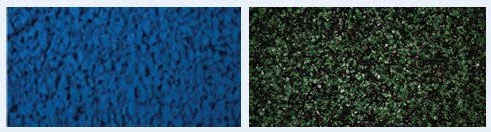

Color Blends:
-
50/50 color is most popular (50% colored granules, 50% black granules)
-
Other blends include 75%/25%, 33/33/33, etc., up to 100% color.
-
Black/Colored granules are different types of rubber,
higher color concentration leads to a stronger surface (50% black is the max)
Maintenance/Installation of PIP Surface
-
Routine cleaning of debris on surface, power washing when necessary, Using approved products to clean surfacing. Work performed by owner
-
Maintenance spray coating strengthens the urethane bond of the pad, Makes existing colors more prevalent and increases longevity. Recommended every 3-5 years based on use. Work is performed professionally.
-
Repair options include patch repairs, seam repairs, perimeter repairs, or ½” wear course re-tops. Work is performed professionally.
-
50° and rising and no precipitation needed for installation. 70° for aliphatic.
